Geberit tools for drainage systems Well-thought-out, reliable machines for pros

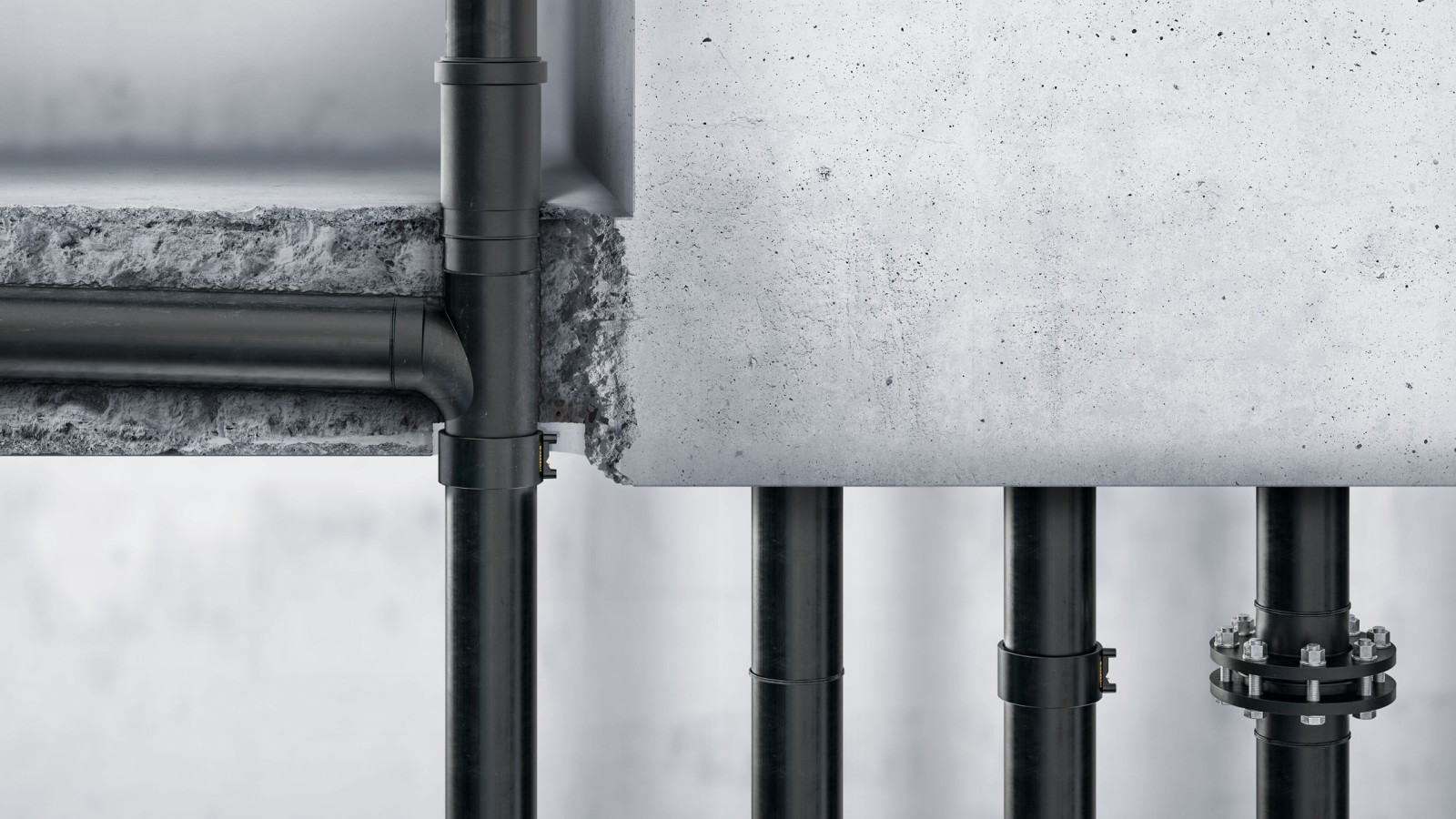

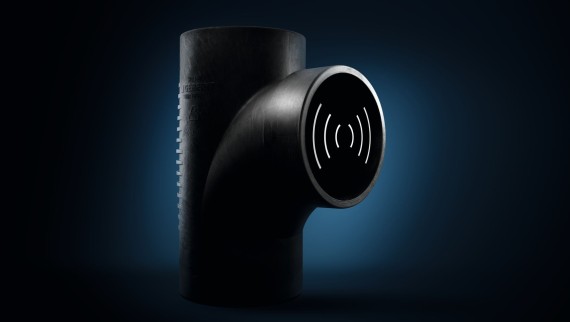

Geberit HDPE and Geberit Silent-db20 pipes and fittings can be welded together. Butt welding and electrofusion sleeve couplings are well suited to this application. Geberit offers a range of modern, highly efficient welding tools for this purpose.
Overview of tools
Electrofusion machines
Geberit welding tools
Pipe working tools
Electrofusion machines

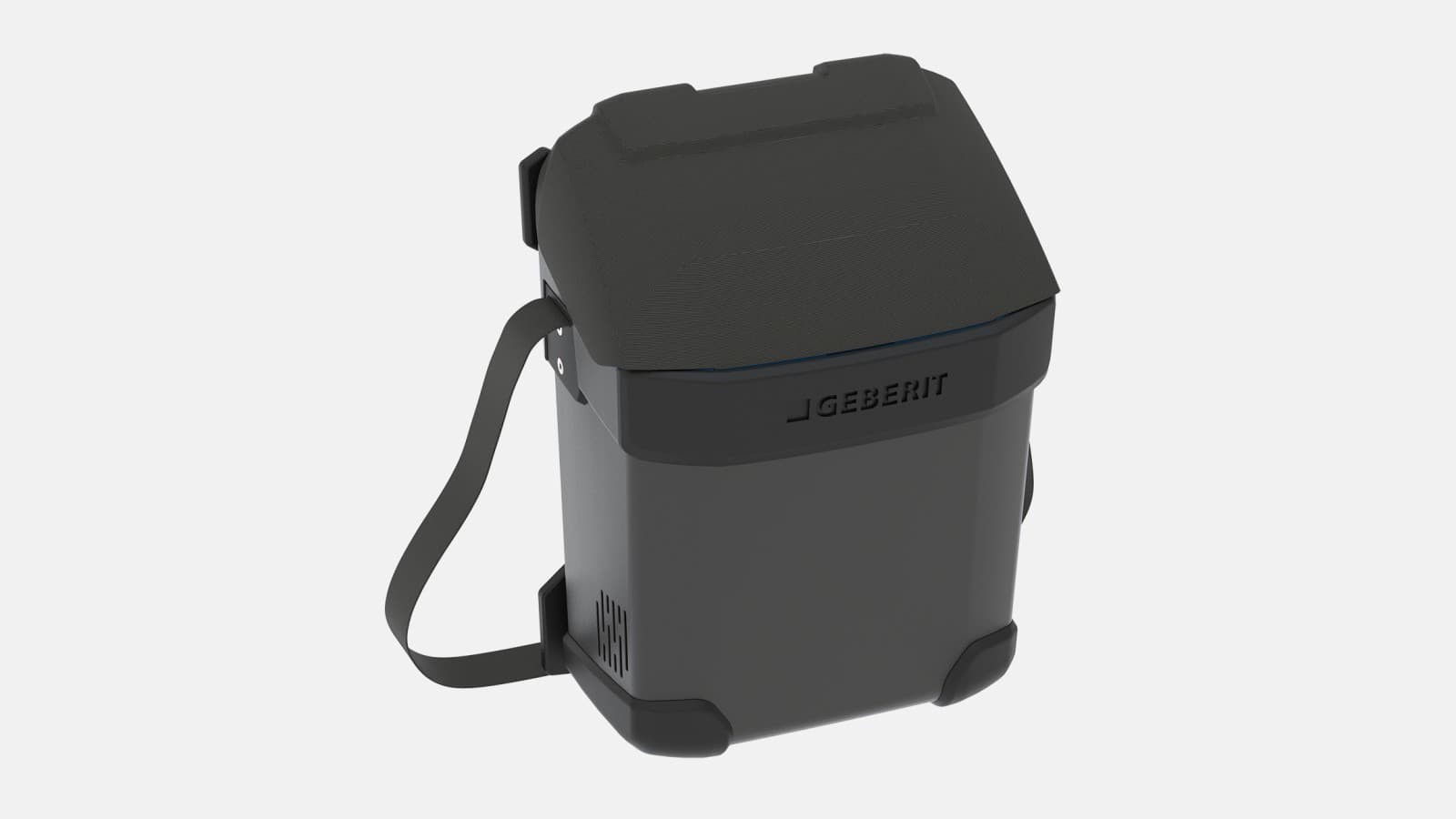

Geberit ESG 3
- A welding tool for all pipe dimensions from DN 40 to DN 300
- Simultaneous welding of up to three electrofusion couplings saves time
- Remote control facilitates installation work
- Compact and robust design for everyday building site work
- Can be operated with a generator thanks to built-in overvoltage protection

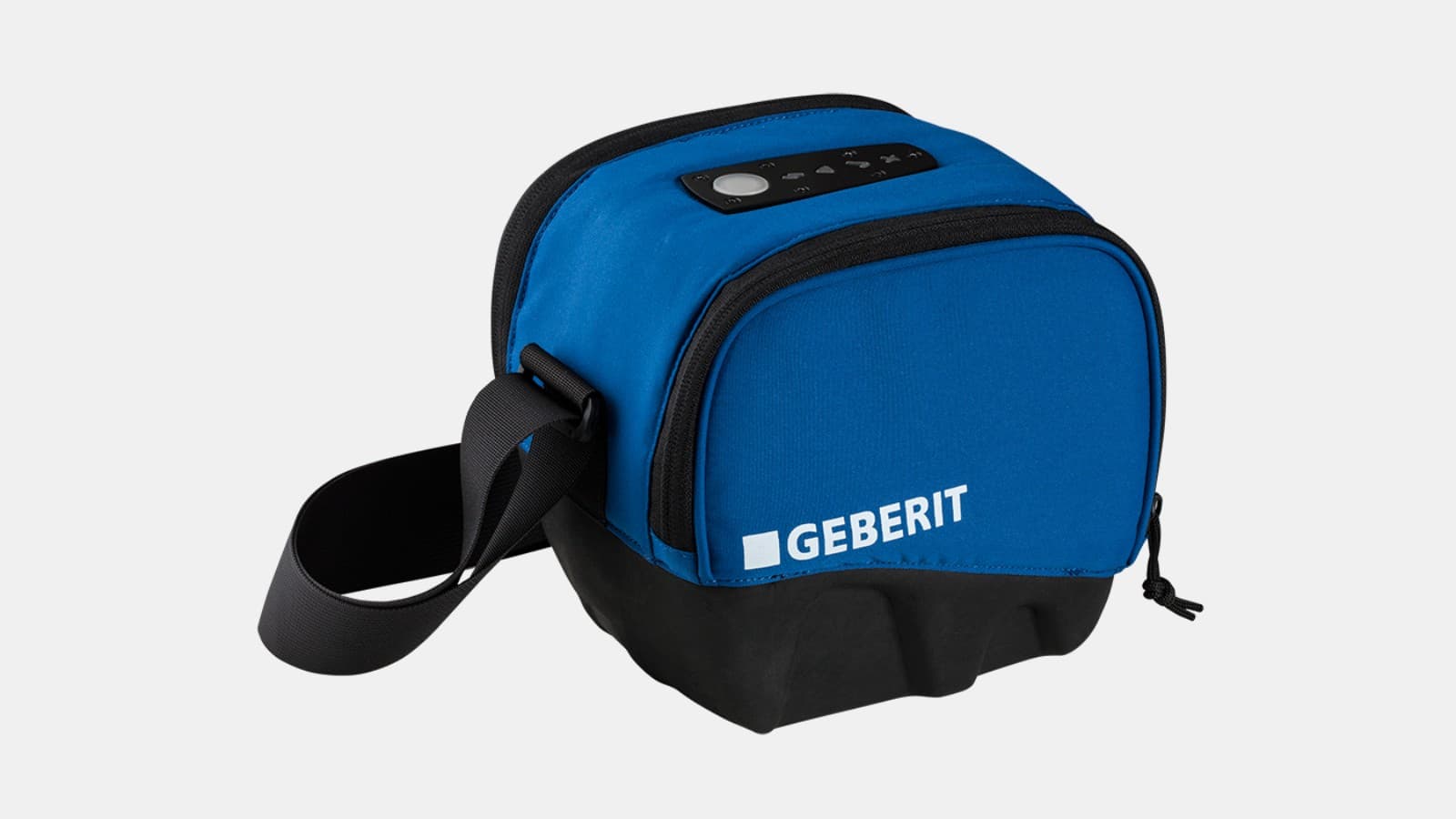

Geberit ESG light
A lightweight and compact welding tool for easy handling at the building site.
Comparison of Geberit ESG 3 and ESG light
| Geberit electrofusion machine | Geberit ESG 3 | Geberit ESG light |
|---|---|---|
| d40-d160 | x | x |
| d200-d315 | x | |
| Electrofusion couplings | x | x |
| Electrofusion tapes | x | x |
| Electrofusion couplings with integrated thermal fuse | x | |
| Quick exchange of the connecting cable for electrofusion coupling | x | x |
| Fall impact cushioning | x | x |
| Right angle plug | x | x |
| Remote control | x | |
| Simultaneous welding of up to three electrofusion couplings | x | |
| Possible to interrupt the welding procedure | x | x |
| Operation with power generator | x | |
| Weight in kg | 5,9 | 2,0 |
